SAUSAGE HIGH-SPEED LINKING AND HANGING SYSTEM
JACKWEL
SAUSAGE HIGH SPEED LINKING AND HANGING SYSTEM
JACKWEL

New! Aiming for the fastest ever stiffing machine.
  • It is a revolutionary equipment that can perform over 1,000 pieces a minute and can produce equal length, equal weight sausages by two operators.
  • Even without the linking chain, JACKWEL makes it possible to make a certain length products with natural casings by using two butterfly wings for twisting and the upper and lower belts for transfer.
  • One of the features of this portioning system is you can freely change the product length and weight without linking chain.
  • Collagen casing is available too. (Manual insertion)
  • Supplier : HITEC (Japan)
    Food : Sausage/Ham, Meat
    Process : Preparation > Stuff/Fill
 Catalog 1  Catalog 2
FEATURES

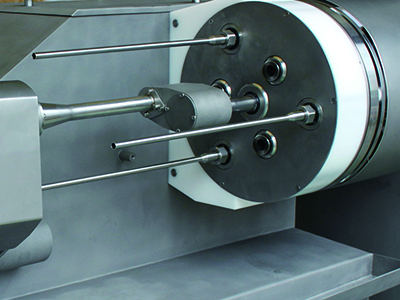

Multi stuffing tube revolver head
The multi stuffing tube turret (revolver head) allows:
- pre-feeding of natural casings
- up to 30% increased production output
- faster cycle times
- reduced machine stopping / waiting time

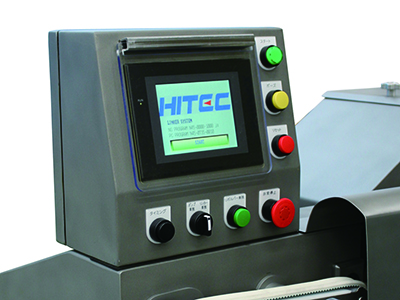

Operator Friendly Monitor
- Easy changing of products
- Production control
- Maintenance and troubleshooting
VIDEO
SPECIFICATIONS
Production Rate Natural Casing Max. 1,000 pcs/min
Production Size 25 - 1,200mm
Casing Size 13 mm - 36 mm
Height 1,457 mm (57 23/64 in)
Width 762 mm (30 in)
Length 4,400 mm (173 15/64 in)
Weight Approx 500 kg (1,102 lbs)
Power Requirements Three-phase, 4.2 kW (without Power of Stuffwel)
Pneumatic Requirements Pressure 0.5 Mpa (75 psi)

※ Specification and equipment are subject to change without any obligation on part of the manufacturer.
※ The above production rate is subject due to the conditions such as production item, factry and other conditions.
